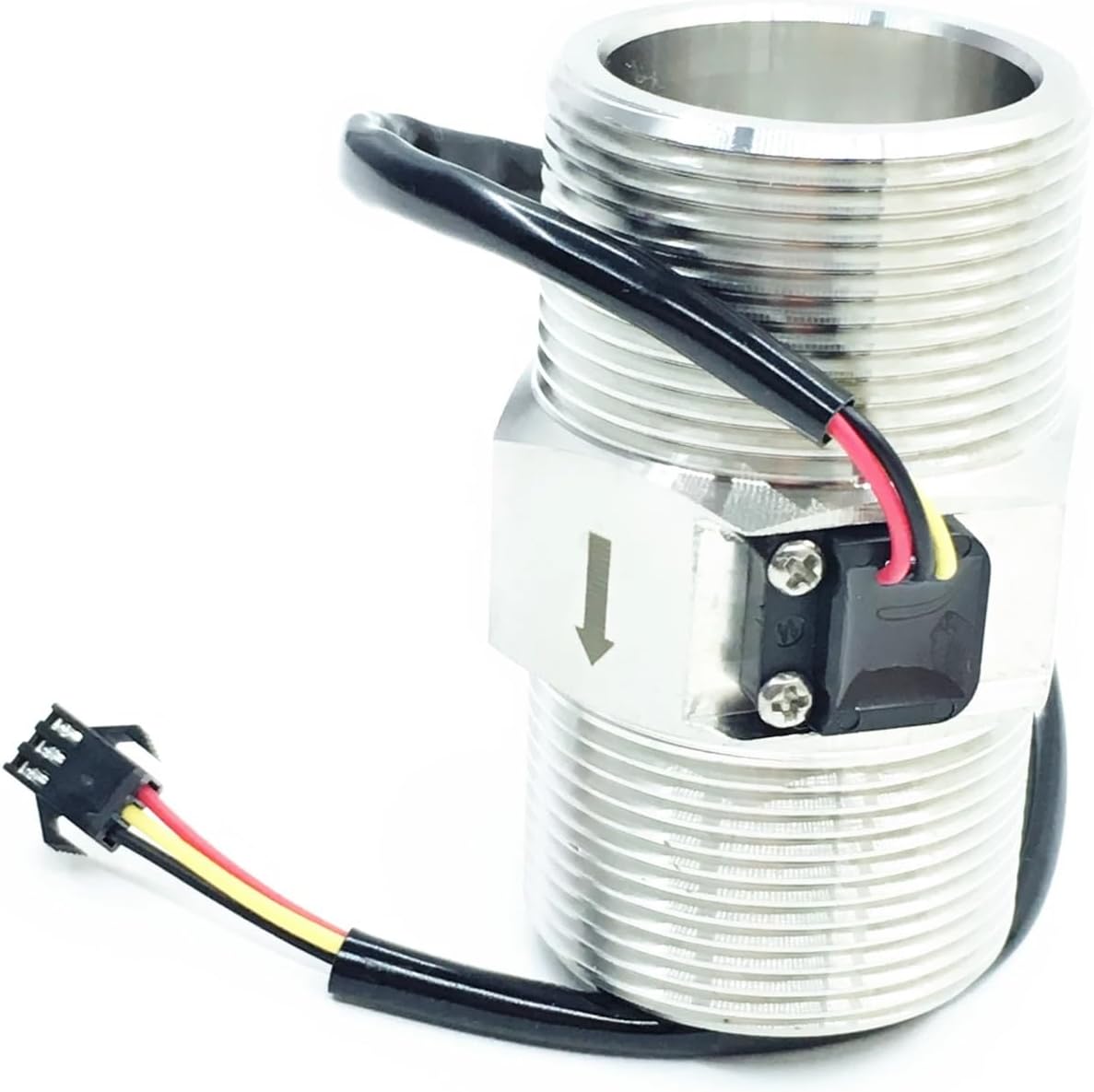

G11/2 DN40 G1.5 or NPT1.5 Turbine Flow Sensor Industry Meter 9~150L/Min SUS304Housing(G1.5,SS-DN40(7-24Vdc)

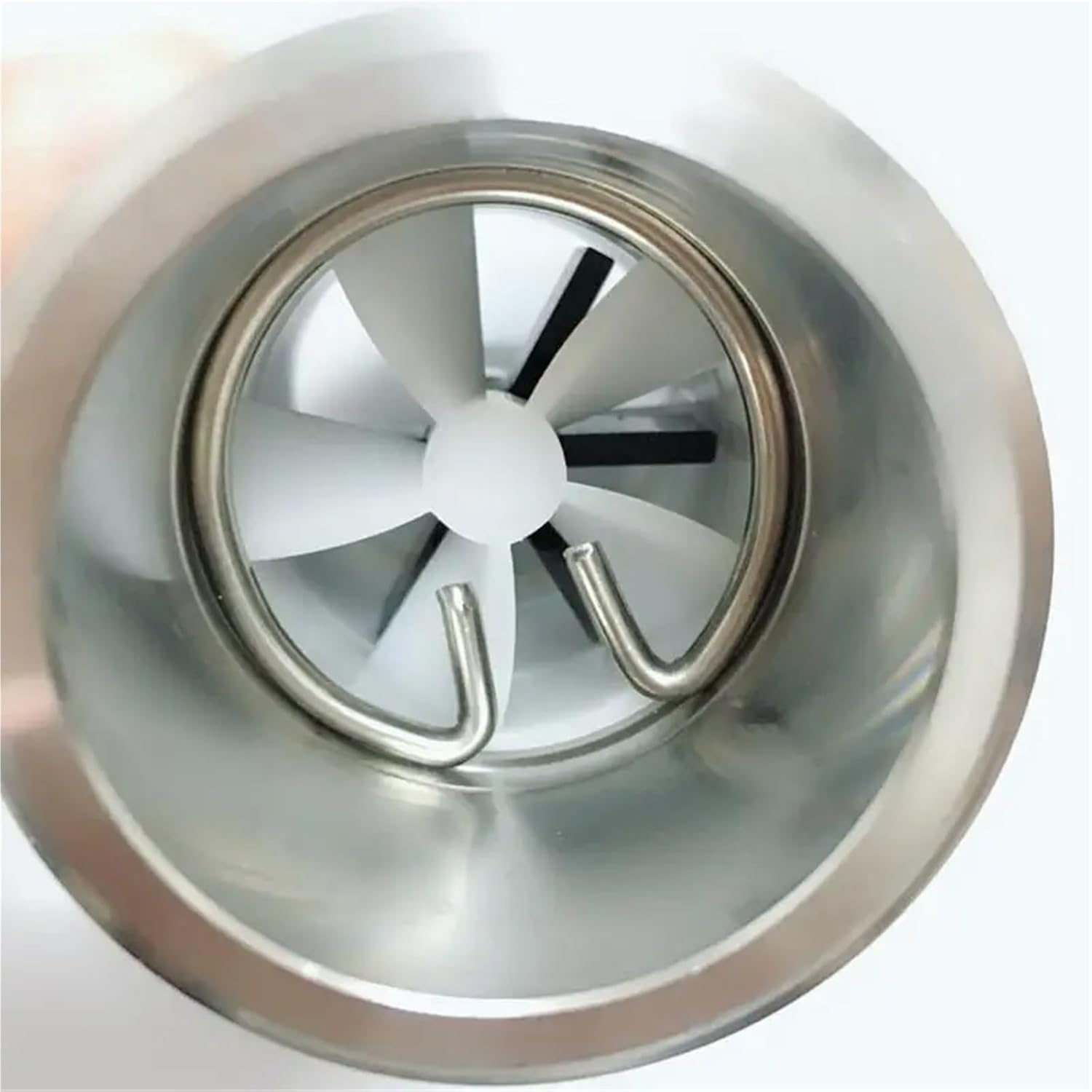

Flow SensorsSS-DN40 / NPT tap Thread OEM for US or Canada pipeHall Turbine flow sensor meter Measuring liquid flow sensorMaterial:SUS304 & Plastic insideSpecificationThreadsizeMaleG15"Or NPT1.5Size:L84MMFlowrate:: 9~150L/minFlowPulse:F(Hz)=(0.7*Q-0.6)+/-10%, Q=L/min flow rateMax.WorkingCurrent:10mA(DC5V)Min.WorkingVoltage:DC4.5VWorkingVoltage:DC3.5-18V or 7-24VLoadCapacity:=10mA(DC5V)OperatingWorkingTemperature:-25Degreecentigradeto+80DegreecentigradeLiquidTemperature: 80Accuracy: 5~10%Wire cable connection :red +black :-Yellow : NPN signal ouptutSS-DN40NTCHall Turbine flow sensor meter Measuring liquid flow sensor &temperatureMaterialSUS304 Plastic insideSpecificationThreadsizeMale G15Size:L84MMFlowrate:: 9~150L/minFlowPulse:F(Hz)=(0.7*Q-0.6)+/-10%, Q=L/min flow rateMax.WorkingCurrent:10mA(DC5V)Min.WorkingVoltage:DC4.5VWorkingVoltage:DC3.5-18V or 7-24VLoadCapacity:=10mA(DC5V)OperatingWorkingTemperature:-25Degreecentigradeto+80DegreecentigradeLiquidTemperature: 80Accuracy : +/-10%Wire cable connection :red +black :-Yellow : NPN signal outputBlue Blue : NTC50K 3950 temperature.Temperature is Sensing the housing without direct contact with liquid,Degree with certain error,not .==========Model Number : SS-DN40DIY Supplies : ElectricalOrigin : Mainland ChinaSize : G1.5" or NPT1.5ROTOR : TURBINEThread : DN40name : DN40 flow sensorsensor : Hall effectt Pulse NPN signal output
